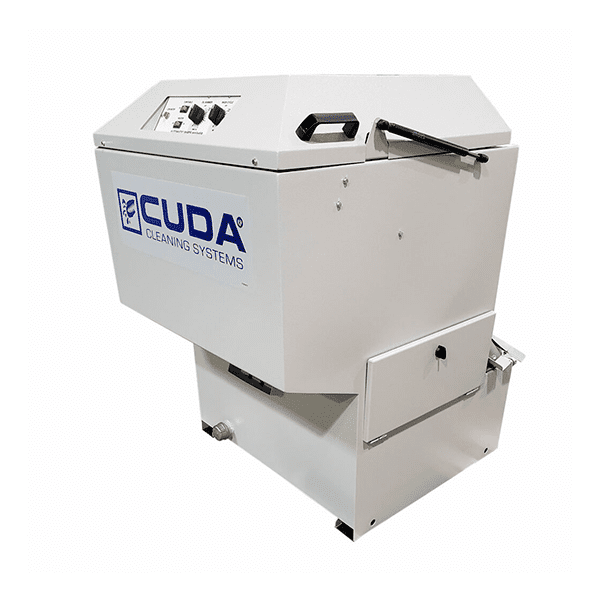

Top-Load Automatic Aqueous Parts Washer 2412
A robust starter machine. Cuda’s 2412 series of parts washers is an attractive entry-level top-load aqueous parts washer. At only 35 inches wide, the Cuda 2412 Series parts washer has a 250-lb. load capacity, and a 24 inch turntable diameter. While boasting Cuda Series durability, it has a 1/2 HP mechanical seal with flush tube style pump and an upper drive arm that rotates the turntable. The 115V models make the 2412 especially versatile for use anywhere in the shop.
The 2412 top-load parts washer is ideal for replacing sink on drum solvent tanks, small engine repair, and general light duty auto repair.
Aqueous parts washers clean faster and better without using harmful solvents! Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don’t use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.
With stainless steel disc and wiper blades, the skimmer effectively removes oil and grease from the cleaning solution to prolong it’s useful life, and to provide a means for convenient oil and grease disposal.
|Turntable Load Capacity:||250 lbs|
|Number of Spray Nozzles:||8|
|Pump Motor:||.5 HP – Close Coupled Sealed|
|Sump Capacity:||25 gal|
|Heater:||1.8 kW (115V), 4.5 kW (208V & 230V)|
|Pump Capacity:||20 GPM – 22 PSI|
|Voltage / Phase:||115V / 1Ph|
230V / 1Ph
208V / 1Ph
|Amperage:||15 – 115V (1Ph)|
24 – 230V (1Ph)
26 – 208V (1Ph)
|Machine Dimensions L x W x H:||41″L x 35″W x 45″H|
|Shipping Dimensions L x W x H:||55″L x 48″W x 58″H|
